Zeolite Molecular Sieve 3A for Dehydration Ethanol

Basic Info.

Model NO.	molecular sieve 3a
Application	Dehydration Ethanol
Transport Package	Steel Drum, Carton Drum, Carton Box, Kraft Bag.
Specification	1.7-2.5mm, 3.0-5.0mm, 1.6mm, 3.2mm
Trademark	XINGFENG
Origin	China
HS Code	3824999990
Production Capacity	5000 Mt/Year

Product Description

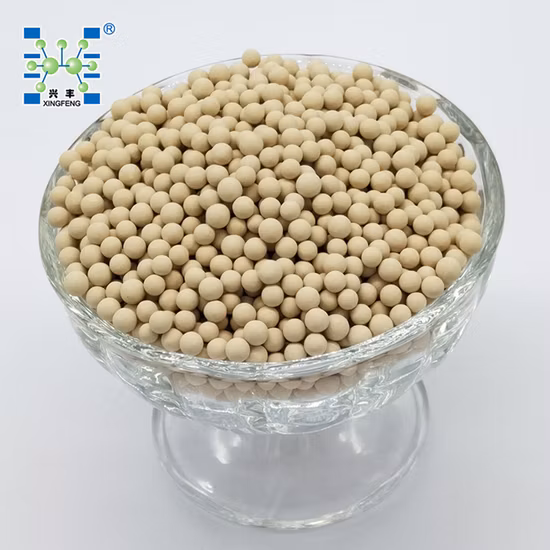

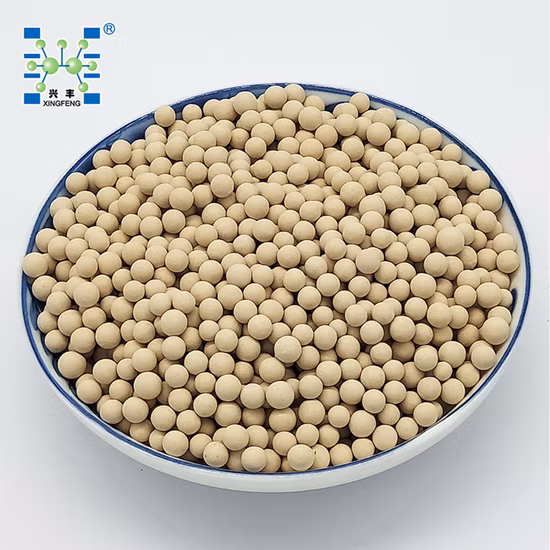

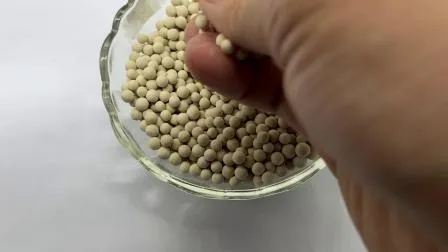

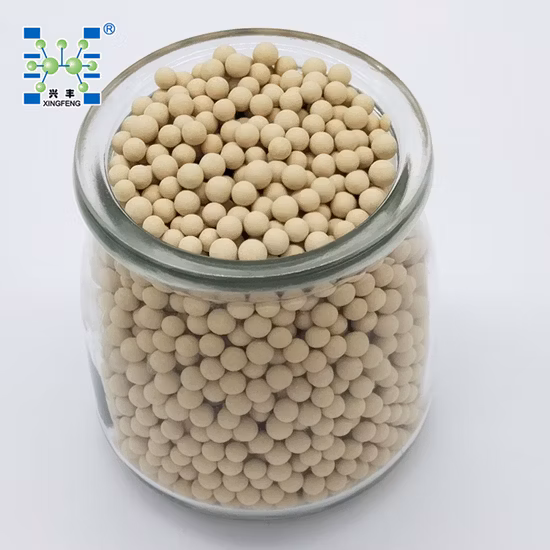

Zeolite Molecular Sieve 3a for Dehydration Ethanol

Description:
Molecular Sieve type 3A is a kind of alkali-metallic, silicon-aluminum compounds, it could absorb the molecular which critical diameter is not more than 3 angstroms.

Technical Parameter:

Properties	Unit	Sphere		Pellet
Size	mm	1.6-2.5	3-5	1/16"	1/8"
Static Water Adsorption	≥mg/g	205	205	210	210
CO2 Adsorption	≤wt%	1.5	1.5	1.5	1.5
Bulk Density	≥g/ml	0.70	0.68	0.68	0.66
Crushing Strength	≥N	30	80	35	70
Attrition Rate	≤wt%	0.1	0.1	0.2	0.2
Package Moisture	≤wt%	1.5	1.5	1.5	1.5

Application:

1. Applied in the dehydration gas streams of unsaturated hydrocarbon (e.g. ethylene, propylene, butadiene, acetylene, etc.) on olefin crackers prior to cryogenic separation of LPG or other olefin products;
2. Dehydration of benzene, toluene, xylene and other solvents (e.g. ethanol, methanol);
3. Natural gas dehydration and with min COS formation;
4. Dehydration of food-grade carbon dioxide;
5. Dehydration of oil and jet fuel.
6. Dehydration of liquid alcohol.

Regeneration:
Molecular sieve can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes. To remove moisture from a molecular sieve, a temperature of 250-300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptan or CO2 levels below 2 ppmv.The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.
Package:
